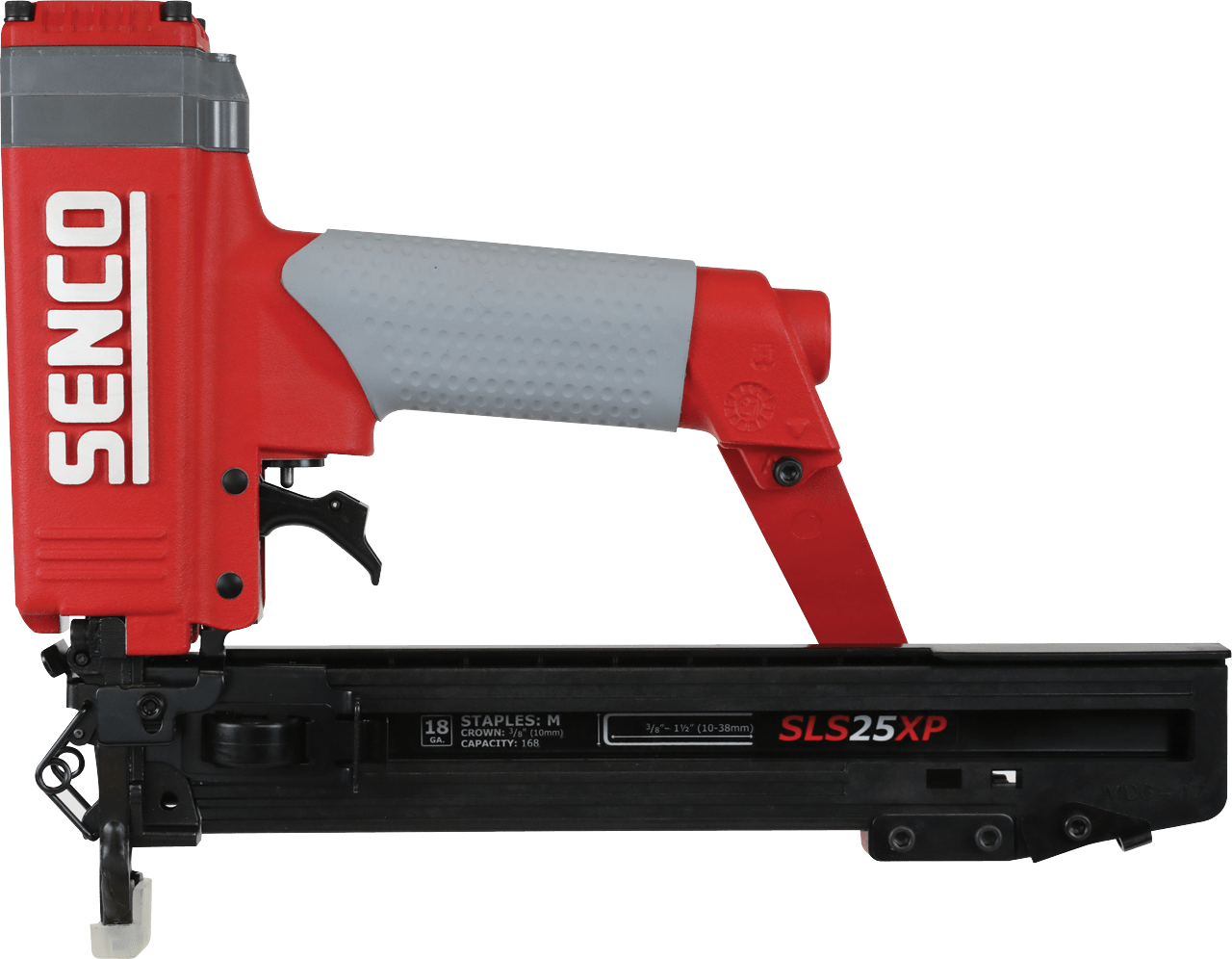

The ergonomically designed SLS25XP stapler is powerful and versatile. It drives 6.4mm wide crown staples in lengths from 10 to 38mm. Although the stapler only weighs 1.2kg, it still has the power to drive 38mm staples into hard woods, for applications like varied component assemblies in furniture manufacturing. The special No-mar pad keeps work surfaces free of marks.
- Lightweight for ease of handling
- Ergonomically designed with a comfort-grip handle to reduce fatigue
- Adjustable depth-of-drive for precise staple setting
- 40% more power than comparable tools
- Heavy duty components, including an aluminum sleeve and piston, mean rugged durability even in high volume production environments
- No-mar pad keeps work surfaces free of marks
- Oil-free design means easier maintenance and no lubrication to stain fine wood
- Muffler ensures quiet operation
Specifications:
- Applications: For varied component assemblies in furniture manufacturing, such as drawers, casebacks, cabinet frame assembly and upholstery spring attachment. Used in underlayment sheathing, paneling, molding/trim, soffits, pre-finished gypsum and siding for on-site and manufactured housing. Used in a variety of general woodworking and wood assembly operations, including lattice and bed-spring attachment.
- Dimensions (LxWxH): 305x50x229 mm
- Net Weight: 1.21 kg
-
Fastener Length: 9.5mm - 38mm
- Staple Type: L Staple
- Firing Mode: Dual
- Air Inlet: 1/4” Female NPT
- Operating Pressure: 4.8 - 8.3 bar
- Air Consumption (at 60 shots per minute): 54.4 l/m
- Operating Temperature Range: -18 - 49 ºC
- Sound Pressure Level (Lpa): 83 dB
- Sound Power Level (Lwa): 89 dB
- Vibration Level: 2.5 m/s²
- Magazine Capacity: 168 Pieces
- Collation Type: Glue Collated
- Collation Angle: 0 º
