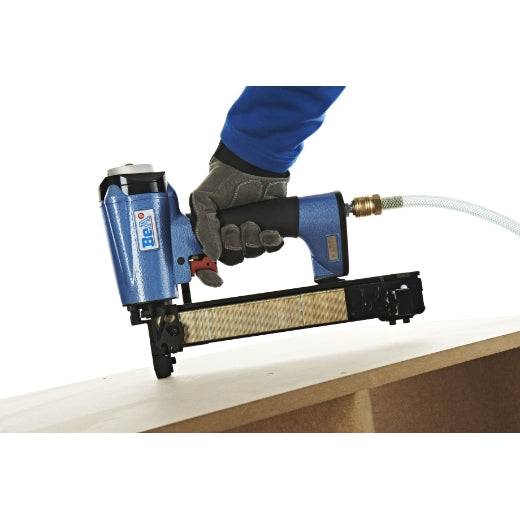

BeA 14/40-770 C Type 14/16 Heavy Wire Medium Crown Framing Stapler 18mm-40mm

• Very light, fast and well balanced 16/17 gauge (7/16 “ crown) stapler
• Fast shot sequence, increases productivity
• Powerful drive up to 40mm (1 5/8 “)
• New ergonomic handgrip, operator friendly, less fatigue
• Adjustable exhaust
• Depth-control adjustment for best performance
• New magazine design for quick reloading
• Quick release front nose
• Available with contact actuation or with single shot actuation
• Accepts all staples type 14 and 16 from 18 – 40 mm (5/8 “ – 1 5/8 “)
• Quality made in Germany

Specifications:

• Applications: Furniture frame assembly, pallets and crates, framing, roofing, subflooring, packaging
• Fastener Type: Type 14 / Type 16 (155)
• Fastener Length: 18mm-40mm
• Dimensions Length/Height/Width: 436.5/251/88.5 mm
• Weight: 1.9 kg
• Magazine Capacity: 110 (Type 14) / 152 (Type 16 (155))
• Recommended operating pressure: 6-8 bar
• Air consumption per operation: 1.4 litre / 6 bar
• Single-shot emission sound pressure level: L Wa, 1s = 85 dB
• Emission sound pressure level at workstation: L pA, 1s = 78 dB
